型 号 Model： |
FT-9020-C001 |
|
产品名称 Product Name: |

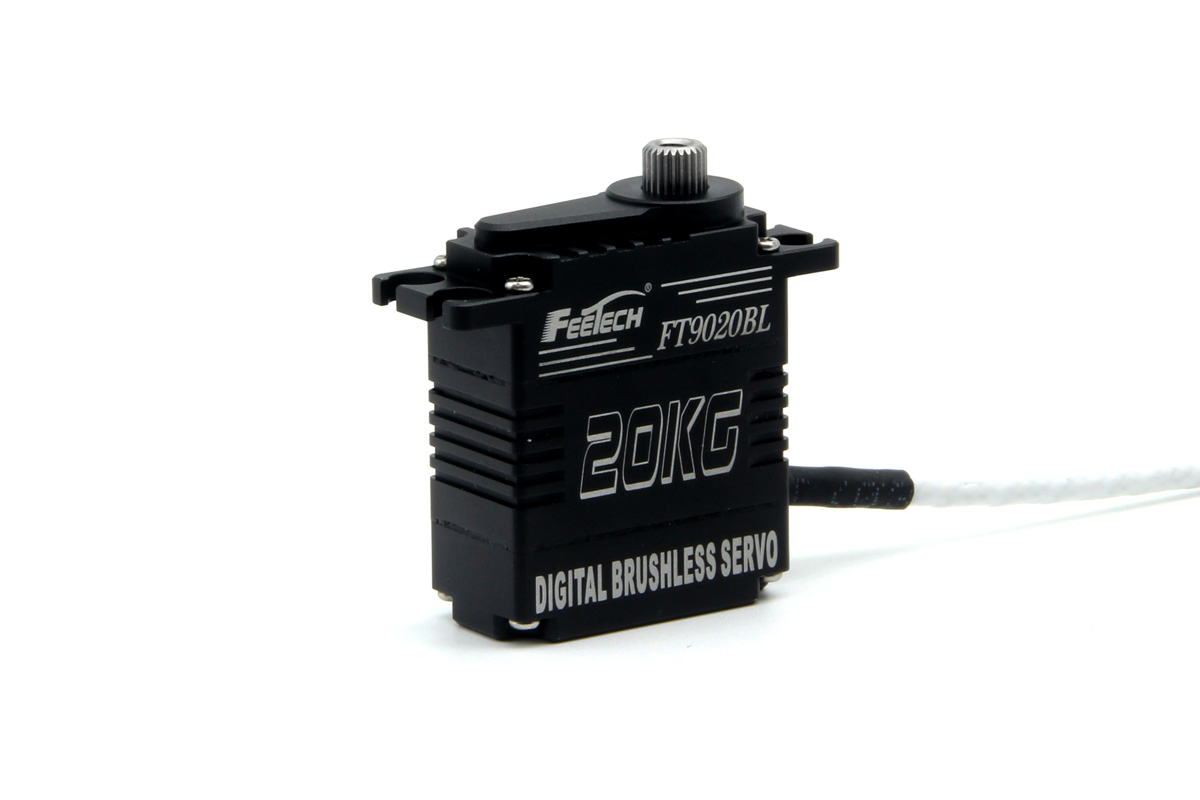

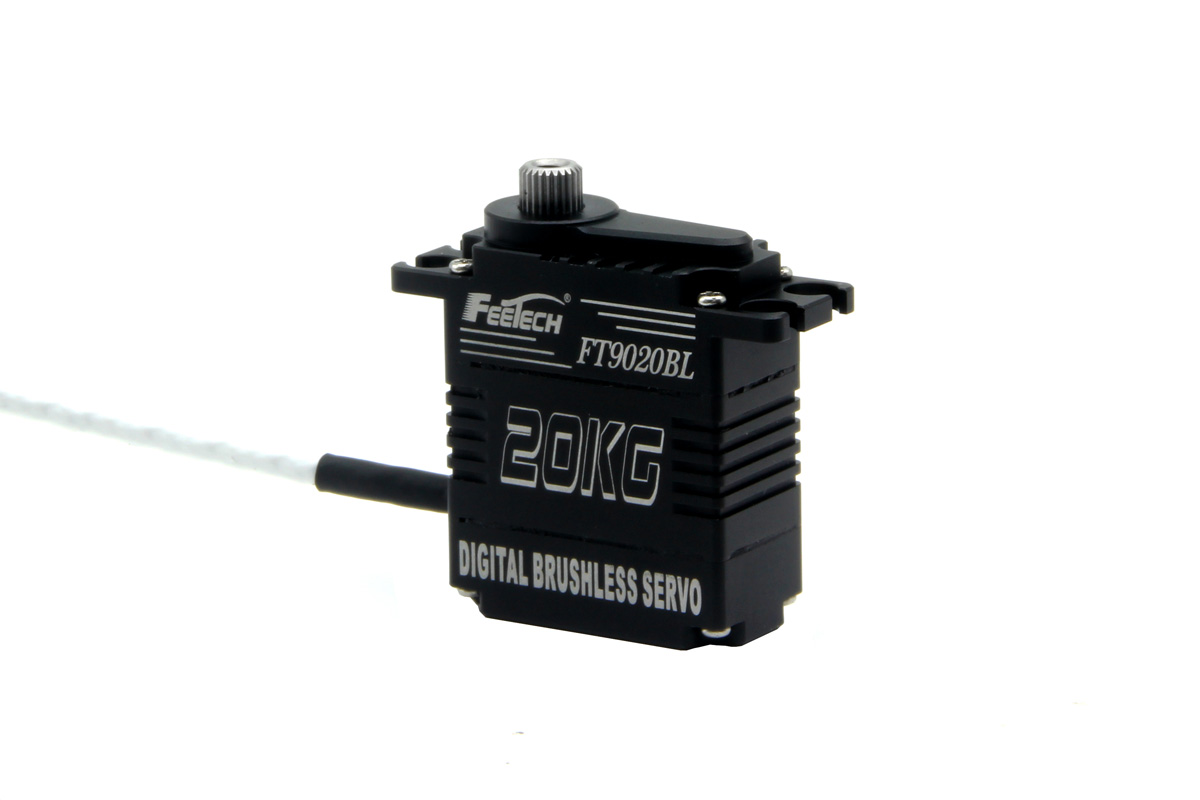

12V 20kg.cm数码舵机/12V 20kg.cm Digital Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -40℃～60℃ |
|
尺寸 Size: |
A: 30mm B: 15mm C: 37.5mm |
|
重量 Weight: |
46.8±2 |
| 齿轮类型 Gear type: | 钢 Steel |
| 机构极限角度 Limit angle: |
No limit |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |
| 出力轴 Horn gear spline: | 25T/5.95mm |
| 减速比 Gear Ratio: | 1/305 |
| 外壳 Case: | Aluminum |

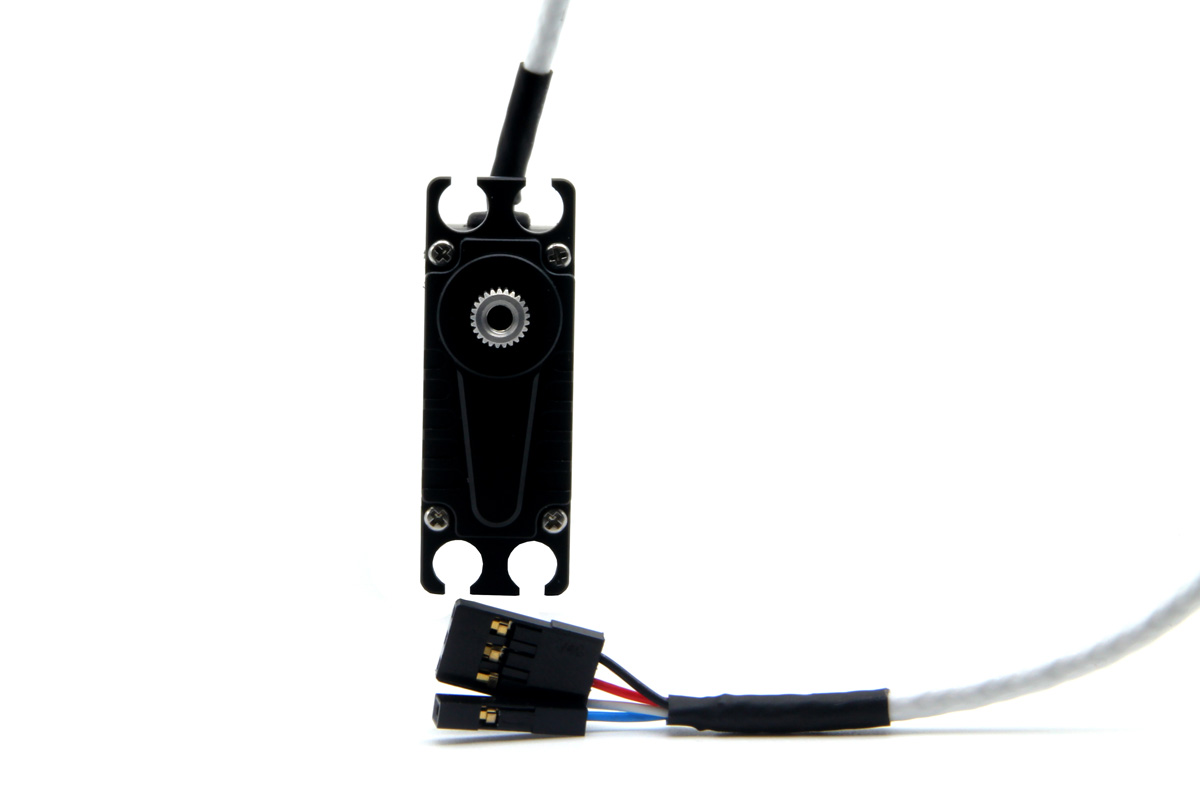

| 舵机线 Connector wire: | 26±1CM |
| 马达 Motor: | Brushless Motor |
|
工作电压Operating Voltage Range: |
9V-12V |
| 静态电流Idle current (at stopped) . | 36mA@12V |
|
空载速度 No load speed: |
0.105sec/60° (95RPM)@12V |
| 空载电流 Runnig current(at no load) : | 200mA@12V |
|
堵转扭矩 Peak stall torque: |
20kg.cm@12V |
|
额定扭矩 Rated torque: |
6.4kg.cm@12V |
| 堵转电流 Stall current: | 400mA@12V |
| 控制信号Command si gnal | Pulse width modification |
| 放大器类型Amplifier type | Digital Controller |
| 脉冲宽度范围Pulse width range | 500→2500 μsec |
| 停止位置Stop position | 1500 μsec |
| 旋转角度Running degree |
200±5°(at 500→2500μsec) |
| 死区宽度Dead band width | ≤4 μsec |
| 旋转方向Rotating direction | 逆时针 Counterclockwise(在500→2500 μsec) |
| 详细规格书下载Download detailed specifications: | |

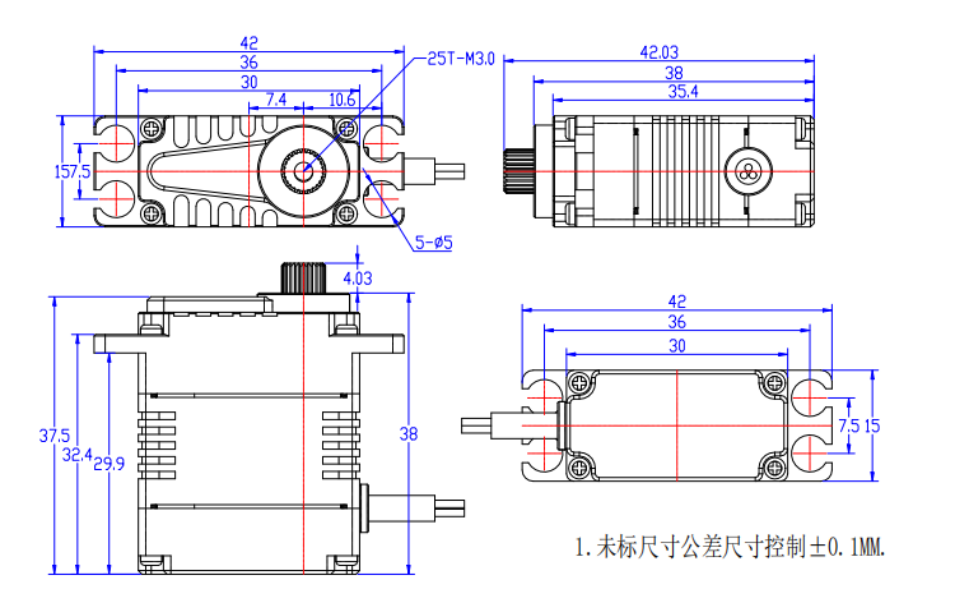

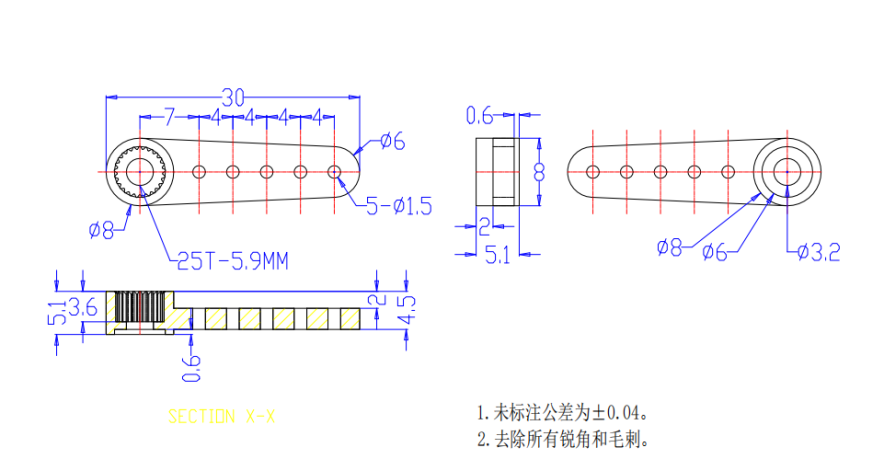

| 外形图 The Drawings: |
